industrial 3D Printers comparison Nexa3D XiP Pro VS Origin One

The XiP Pro from Nexa3D and Stratasys Origin One are two of the most popular high-speed, industrial 3D printers available. Here is a simple comparison between the systems to help you determine which one is better for your particular application.

industrial 3D Printers comparison

3D Printer

Nexa3D® XiP Pro

XiP Pro offers the highest daily throughput in its class at the lowest operational costs making it ideal for industrial users looking to scale additive production. Learn More

Stratasys® Origin One

Origin One is one of several Stratasys resin-based 3D printers. Origin One offers high-speed 3D printing utilizing its P3™ tech for manufacturing and prototyping applications.

Technology

LSPc

Light Engine

LED/LCD (7K, 405nm)

46 μm with 23 μm sub-pixel resolution

DLP (4K, 385nm)

50 μm

Throughput

Build Volume

292 x 163 x 410 mm (19.5 L)

192 x 108 x 370 mm (7.5 L)

Vat Capacity

Materials

Open with 25+ validated resins

Resin Dispensing

Smart resin-feed system

manual pour-in

Wash Solution

xWASH and xCLEAN – washes two full builds at once

Requires 3rd party solution such as Branson 8800 ultrasonic bath, IPA, and Tupperware

Post-Cure Solution

xCURE cures up to three builds at once

Requires 3rd party solution such as Dymax ECE5000 Box

Price

$59,995 (40% less than Origin One)

$99,000

3D Printing Technologies

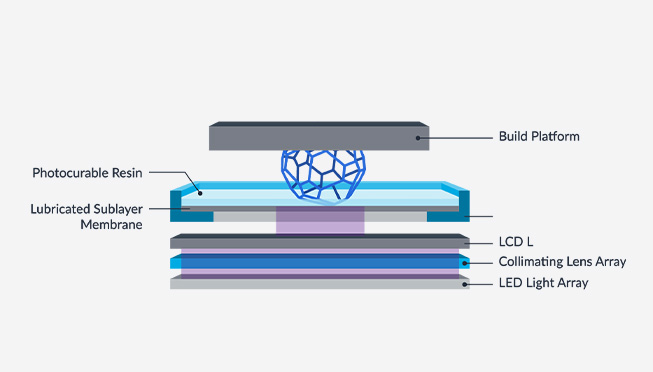

Nexa3D LSPc Technology

Lubricant Sublayer Photo-curing utilizes a proprietary membrane that reduces peel forces enabling high-speed 3D printing for parts small and large, solid and latticed. An industrial LED light engine further enables high resolution and high precision 3D printing.

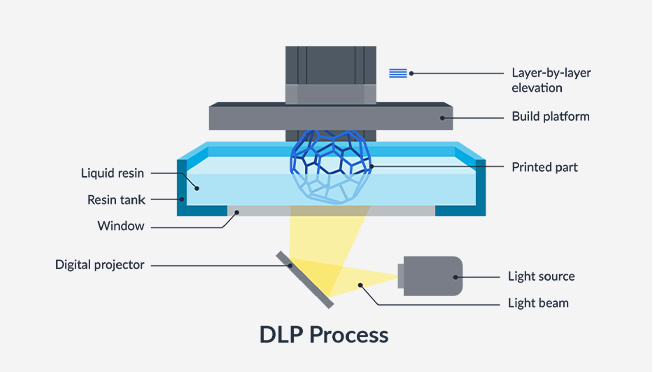

Origin P3

Programmable PhotoPolymerization (P3) is a version of DLP with a variety of sensors to control variables throughout the print and an inflating membrane that acts to remove the print from the vat bottom.

Throughput Comparison

Nexa3D’s XiP Pro printers are able to manufacture parts with a significantly higher throughput than the Stratasys Origin One, translating to more parts in the same amount of time and lower cost per part for manufacturers. Here’s how these printers compare:

Beveled Cylinder Part Dimensions 24.4 x 24.4 x 100 mm

Part Volume 25 cm3

Part Dimensions ST45

	Print Time (Full Build)	Parts Per Build	Print Time Per Part	Print Time Per Part
XiP Pro*	1 Hour 36 Minutes	66	1.5 Minutes	758
Origin One†	2 Hours 53 Minutes	28	6 Minutes	178

* These calculations used ST45 material at 200 micron layer height. † Data gathered 04/23 as reported by the Stratasys® manufacturing ROI calculator for Textured Cylinder in ST45

Post-Processing Systems

XiP Pro Series xWash / xCure

Nexa3D offers two purpose-built post-processing accessories. The xWASH holds up to two full builds in its 35 L volume and completely washes residual resin in a 2-4 minutes. The xCURE can hold three full builds and has the ability to cure and heat parts with preset profiles built in.

xWash Learn More

xCure Learn More

Stratasys® 3rd-Party Only

Origin One does not offer a purpose built post-processing solution, but they do recommend a list of third-party options. The wash baths tend to use ultrasonic waves. The Branson 8800 is a standard example with a bath volume of about 20 L – meaning parts may need to be washed in batches.

Printer Throughput
Repeatability & User Handling
Printer Speed
Printer Accuracy
