Handheld 3D Scanners

• Wireless and standalone configuration
• Complete on-device scan-to-mesh capabilities
• Marker-free laser scans with texture
• Powerful embedded computing by NVIDIA

Key Features:

• MEMS projector with a resolution of up to 0.05mm
• VCSEL projector capable of working under direct sunlight
• 48MP camera for lifelike colors
• Color: Titanium Gray

• 33-micron accuracy
• Built-in software and processing
• Open API programming
• Full spectrum ChromaSpec™ structured light for multirange scanning

Key Features :

• Handheld Hybrid Blue Laser / Infrared VCSEL 3D Scanner
• Metrology-grade accuracy up to .02mm
• Compact Size: 193mm x 63mm x 53mm

Hardware Requirements:

• Intel Core i7 3770 or equivalent processor
• NVidia graphics card with at least 1280 CUDA cores
• 32GB RAM minimum
• USB 3.0 connection

Supported OS: Windows 10/11 64-bit

Please Note: This item is unable to be shipped outside the U.S.

With an improved texture camera and increased accuracy, the EinScan H2 is an excellent option for capturing detailed objects in color.

Key Features:

• 5 MP camera
• Increased accuracy and resolution
• Adjustable working distance

Hardware Recommendations:

OS: Win10/11, 64-bit

Graphics card: NVIDIA GTX/RTX, RTX2060 or better

Video memory: ≥6GB

Processor: Intel I7-11700 or better

Memory: ≥64GB

Supported OS: Windows 10/11 (64bit)

Key Features:

• Dual scan modes: Auto Scan and Fixed Scan
• Single scan speed: 1s
• Single shot accuracy of <0.1 mm

Windows Hardware Recommendations:

Intel dual-core i5 or higher

Display card: Nvidia GTX660 series or higher

VRAM: 3 GB minimum

RAM: 16 GB minimum

Ports: 1 × USB 2.0 or 3.0,

Supported OS: Windows 7, 8.1, or 10 (64bit)

Mac Hardware Recommendations:

CPU: Apple M1 or better

GPU: 7-core GPU or better

Memory: 8 GB RAM or more

Storage: At least 800MB available

USB port: USB 3.0

Supported OS: macOS Ventura (macOS 13) or later

Experience enhanced 3D scanning with the EinScan SP V2. Scan faster, align seamlessly, and create high-resolution 3D models with exceptional precision.

Key Features :

• Desktop 3D Scanner
• High accuracy scanning of better than 0.05 mm
• Scan speed of single shot: < 1s
• Scan speed of one turn: < 45s

The Einstar 3D Scanner makes data capturing simple with its revolutionary stabilization techniques, all at an affordable price point.

Key Features

• Handheld and easy-to-use 3D scanner
• Up to 14 FPS Scan Rate
• Full color and outdoor scanning capabilities
• Includes EXStar software

Hardware Recommendations :

• Intel Core i7-11800H or higher processor
• NVIDIA GeForce GTX 1060 or higher
• 32GB RAM or above
• USB 3.0 connection

Supported OS: Windows 10/11 64-bit

Please Note: This item is unable to be shipped outside the U.S.

Pack of 5000 Markers, for use with EinScan Pro 2X Series / Pro HD Series 3D Scanners

The truly portable and versatile handheld 3D scanner for high resolution results.

• Handheld LED Light Source 3D Scanner
• 10 - 30 frames per second scan speed
• 3,000,000 max points per second using Handheld HD scan mode
• Optional industrial pack and color scanning module
• Ideal for small to medium sized, high-detail objects such as jewelry

Hardware Recommendations:

• Intel Core i7-8700 or equivalent processor
• NVIDIA GTX/RTX series graphics cards, higher or equal to GTX 1080 with at least 960 CUDA cores
• 4 GB minimum VRAM, 16 GB minimum RAM, 64 GB minimum system memory
• USB 3.0 connection

Supported OS: Windows 10 (64bit)
Please Note: Not compatible with AMD processors.

EinScan Expert Certified

Dynamism is an awarded Gold EinScan Expert Reseller. The certification acknowledges Dynamism’s superior pre-sale and post-sale support for EinScan products and customers.

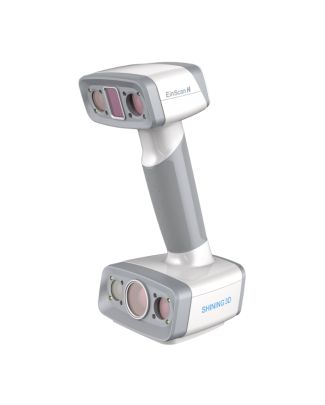

The EinScan H provides hybrid infrared and LED light scanning, creating a solution for difficult to scan surfaces while delivering high quality full-color 3D data within minutes.

• Handheld Hybrid Infrared / LED 3D Scanner
• 20 frames per second scan speed
• 1,200,000 max points per second
• Full color texture capturing included
• Ideal for full color scanning of objects, difficult to scan dark surfaces, and head / body scans including hair



Hardware Recommendations:

• Intel Core i7-8700 or higher processor
• NVIDIA GTX/RTX series graphics cards, higher or equal to GTX 1080 with at least 960 CUDA cores
• 4 GB minimum VRAM and 32 GB minimum RAM
• USB 3.0 connection

Supported OS: Windows 10 (64bit)

Please Note: Not compatible with AMD processors.

Warranty extension is limited to two years total (one extension), and must be purchased while the standard warranty is active.

EinScan Expert Certified

Dynamism is an awarded Gold EinScan Expert Reseller. The certification acknowledges Dynamism’s superior pre-sale and post-sale support for EinScan products and customers.

Now includes free Industrial Pack and Color Pack!

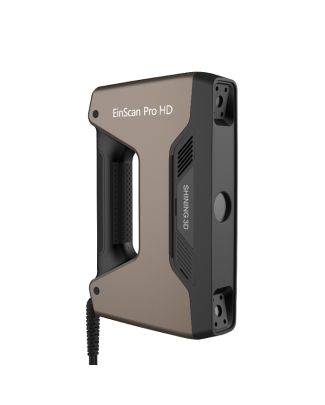

The EinScan Pro HD provides high-quality 3D scanning with improved efficiency.

• Handheld LED Light Source 3D Scanner
• 10 - 30 frames per second scan speed
• 3,000,000 max points per second
• Optional industrial pack and color scanning module
• Ideal for cast metal, dark, and intricate textured surfaces

Hardware Recommendations:

• Intel Core i7 or equivalent processor
• Quadro card P1000 and above or NVIDIA GTX660 and higher graphics card with at least 960 CUDA cores
• 4 GB minimum VRAM and 16 GB minimum RAM
• USB 3.0 connection

Supported OS: Windows 7, 8.1, or 10 (64bit)

Please Note: Not compatible with AMD processors.

Warranty extension is limited to two years total (one extension), and must be purchased while the standard warranty is active.

EinScan Expert Certified

Dynamism is an awarded Gold EinScan Expert Reseller. The certification acknowledges Dynamism’s superior pre-sale and post-sale support for EinScan products and customers.

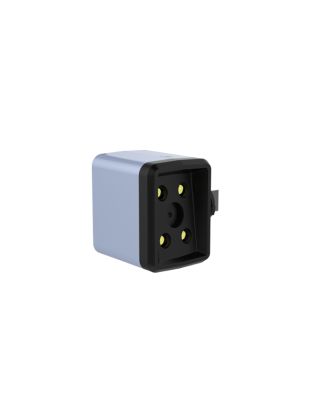

Allows for full-color texture capture with EinScan Pro 2X scanners.

Please Note: Color scanning is not supported in Handheld HD Scan Mode.
